Our Price: $4,579.00

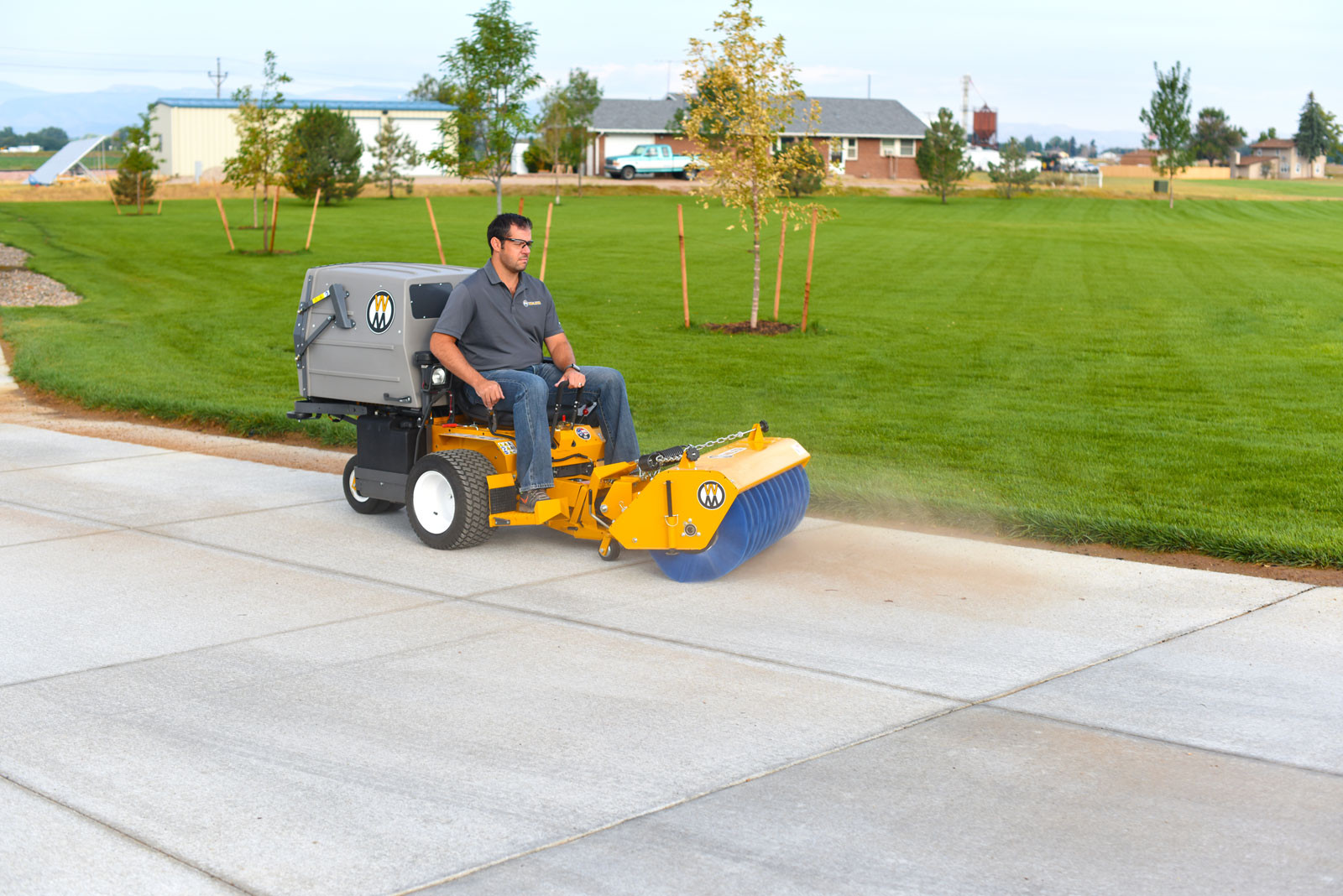

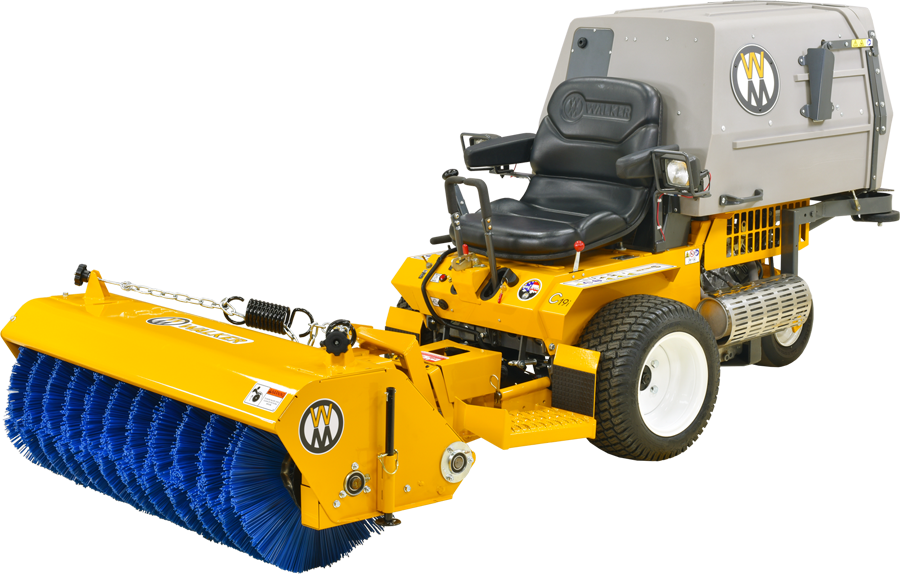

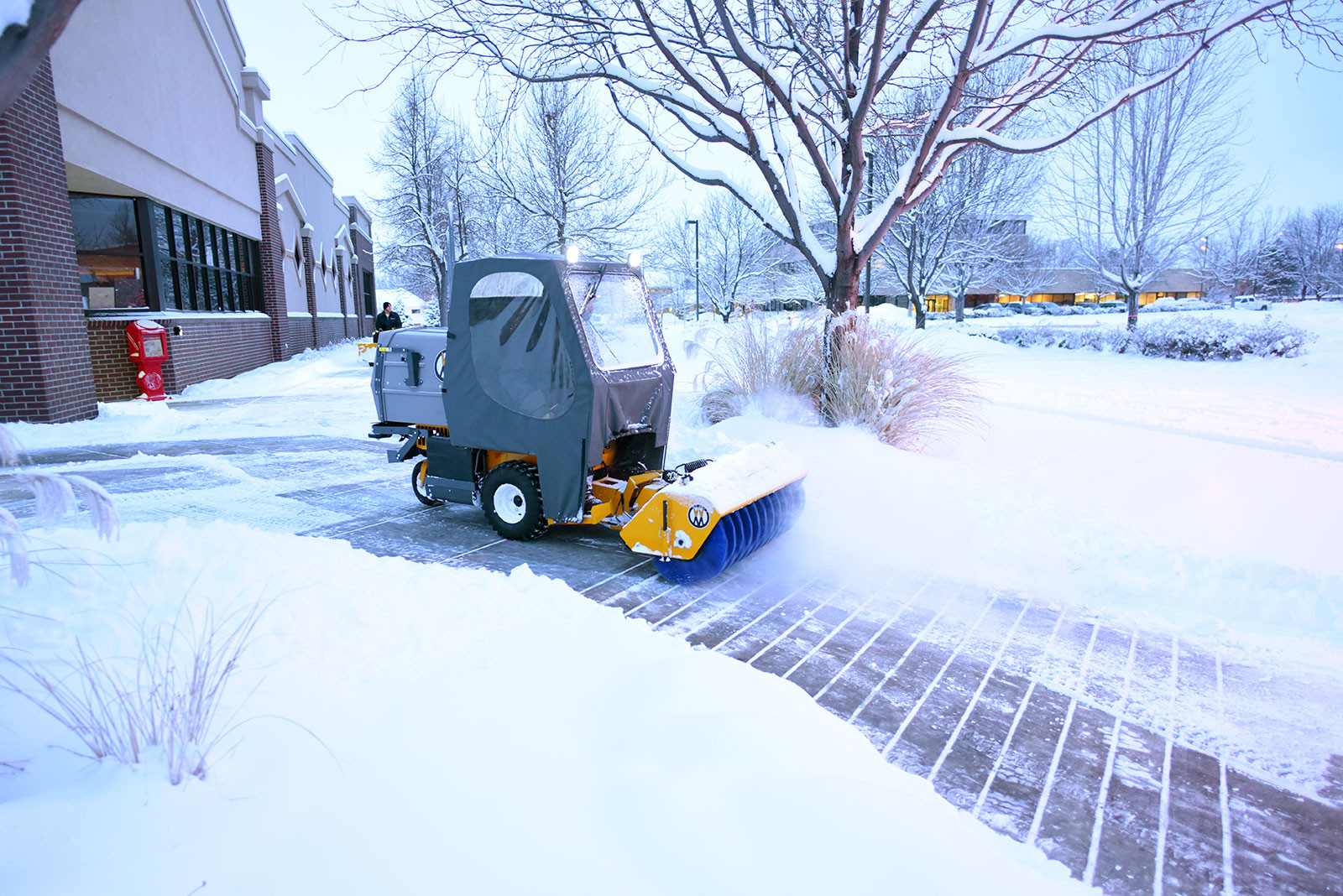

The Rotary Broom, with a 47-inch sweeping path and five-position angle head is ideal for sweeping debris or light snow from hard surfaces.
The Rotary Broom does a great job of sweeping and removing gravel and debris from turf areas along roads, paths and playing fields. Down pressure is spring weighted and is adjustable for great sweeping action and minimum brush wear. The Rotary Broom is another way to extend the usability of the Walker commercial riding lawn mower.
Type: Implement
Part: H13
Size: 47 in (119 cm)
Ideal Application: Snow Removal, Sweeping, Dethatching
Key Features: Easy down pressure adjustment, foot controlled angle adjustment
Engine
| Manufacturer | Briggs & Stratton Vanguard |
| Model | 356447-1338 |
| Displacement | 570 cc (34.8 cu. in.) |
| Max Power | 18 HP @ 3600 RPM |
| Max Torque | 29.2 ft-lbs |
| Cooling System | Air |
| Fuel | Regular grade unleaded gasoline (87 octane minimum, 10% ethanol maximum) |
| Fuel Capacity | 4 gal (15.1 liter) |
Electrical
| Battery | 12V, 300CCA |
| Charging System | Flywheel Alternator |
| Charging Output | 16 Amp DC (Regulated) |
Transmission
| Manufacturer/Model | Dual, Independent Hydro-Gear® ZT3100 Integrated Transaxles |
| Steering | Hand Lever Control, Individual Wheel |
| Forward Speed Control | Precision Friction Lock Lever, Cruise Control, with Neutral-Park Position |
| Parking Brake | Internal Mechanical Cog Lock for each Transaxle (Single Lever Control) |
| Forward MPH (km/h) | 0-7.4 (0-11.9) Infinitely Variable |
| Neutral | Transmission Release by Manual Dump Valve |
Blade Drive
| PTO Shaft | Quick Disconnect Splined Shaft with Two (2) High-Speed U-Joints |
| Blade Drive Clutch and Brake | Ogura Electric Clutch with Soft Start Engagement and Mechanical Brake [Stops Blades within Five (5) Seconds of Disengagement] |
Grass Handling
| Blower | 12.75 in. Diameter, Three-Blade Paddle Wheel, Integrated Thru-Shaft PTO |
| Max. Blower RPM | 2900 RPM |
| Grass Catcher Capacity | 65 Gal / 7.0 Bu / 246 L |
| Full Signal | Grass-Pak® full signal alerts operator when catcher box is full |
| Powerfil® | Oscillating Delivery Spout Driven by 12 Volt Electric Gearmotor Spreads Material throughout Interior of Catcher @ 35 |
Deck
| Recommended Cut Width | 36 to 56 in. (91 or 142 cm) (Collection, SD, Mulch) |
| Cutting Height | 1 to 4 in (2.5 to 10 cm) or 1.5 to 4.5 in (4 to 11.5 cm) in 1/2 in (1 cm) Increments |
| Deck Suspension | Torsion-Flex Frame with Caster Wheels and Counterweight Springs |
Tires
| Drive | 18 x 7.00-8 (pneumatic 4-ply, standard) 18 x 8.5-10 (pneumatic, 4-ply, optional low-profile) |
| Tailwheel | 13 x 6.50-6 (pneumatic 4-ply) |
| Deck Caster | 8 x 3.00-4 (Foamed rubber standard, optional pneumatic) |
Size & Weight
| Length - Tractor Only | 65 in (165 cm) |
| Length - Tractor with C42 deck | 89.25 in (226.5 cm) |
| Length - Tractor with C48 deck | 94 in (239 cm) |
| Length - Tractor with deck tilted | 77 in (196 cm) |
| Length - Tractor wheel base | 42.25 in (107 cm) |
| Width - Tractor Only (Outside Tire) | 38.5 in (98 cm) NOT narrow drive tires |
| Width - Tractor with C42 deck | 43.25 in (110 cm) |
| Width - Tractor with C48 deck | 49.25 in (125 cm) |
| Height - Tractor | 46.5 in (118 cm) |
| Weight - Tractor Only | 675 lbs (306 kg) |
| Weight - Tractor with C42 deck | 866 lbs (393 kg) |
| Weight - Tractor with C48 deck | 898 lbs (407 kg) |
Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
