Our Price: $8,305.00
Specification

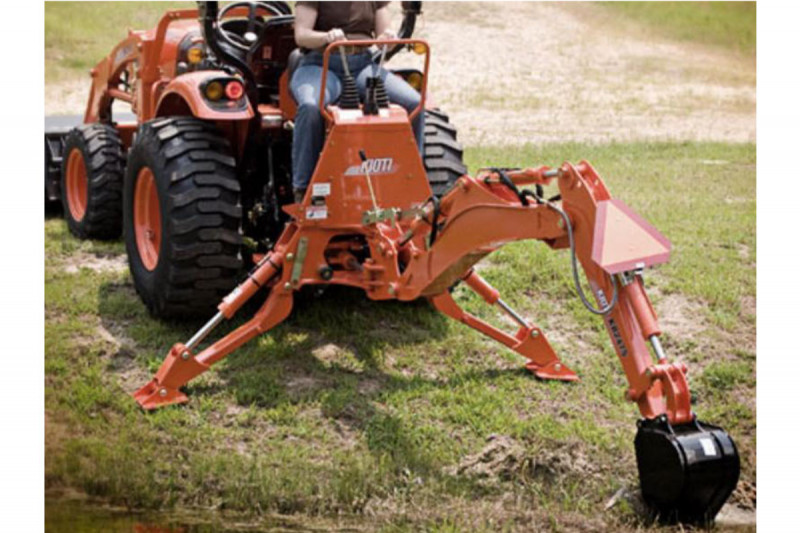

| Generic Type (Primary) | Backhoes |
Operational
| Operating Conditions | Bucket Digging Force: 2,817 lbs. (1,278 kg) | Dipperstick Digging Force: 2,105 lbs. (955 kg) |
Hydraulics
| Maximum Pressure | Operating: 2,466 psi (170 bar) |
| Dimensions | Reach from center line to swing pivot: 125.1 in. (3,180 mm) | Maximum Leveling Angle: 10° | Swing Arc: 180° | Transport Overhang: 49 in. (1,245 mm) | Bucket Rotation: 180° | Stabilizer Spread (Down Position): 68.7 in. (1,745 mm) | Stabilizer Spread (Up Position): 46.4 in. (1,180 mm) | Angle of Departure: 21° |
| Height | Loading (Bucket at 60°): 72.4 in. (1,840 mm) |
| Transport Height | 83.5 in. (2,120 mm) (Maximum) |
| Depth, Maximum | Digging (two foot flat bottom): 89.7 in. (2,280 mm) |
Weights
| Weight, As Shipped | 880 lbs. (399 kg) Backhoe |
Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
